Introduction

For a long while there was a question as to whether the surface spall resulting from a bried explosion would significantly affect the teleseismic signature of P and surface waves from the process. In 1983, Day et al. proposed a surface force function for the spall. Later Day and McLaughlin (1991), showed the equivalence of the surface force to an horizontal crack at depth opening in the vertical direction. If the Fourier transform of the vertical force at the surface is
 Mg S(omega)
then the moment tensor source for the crack at depth HS is
#
# Equation (16) of Day and McLaughlin(1991) has
#
#                             |  A   0   0  |
#             Mg   VP^2       |             |
# M(omega) = ---------------- |  0   A   0  |  S(omega)
#             HS (i omega)^2  |             |
#                             |  0   0   B  |
#
#
# where A = lambda/(lambda + 2 mu ) = ( Vp^2 - 2 Vs^2 )/ Vp^2
The source time function for the force is a combination of Dirac delta and Heaviside functions. In this implementation we use the gsac fg PAR2 tau command to create the double integral of this function as
t H(t) + (t-T) H(t - T) - t2 H(t) - (t -T)2 H(t - T)
this is convolved with the moment tensor synthetics and its second derivative is comvolved with the force synthetics.

Processing scripts

The processing script is in the file spall.tgz . After downloading this, do the following operation
gunzip -c spall.tgz | tar xvf -
After unpacking you will see the following files:
DOIT           - this calls the other scripts
DOITREGIONAL   - this computes the response for a force at the
                 free surface, and opening cracks at depths of
                 0.1, 0.2, 0.3 and 0.4 km
DOD2           - The DOD2, DOD2a and DOD4 make the plots
DOD2a
DOD4
EPSTOPNGWHITE  - This script uses ImageMagick to make the PNG file
                 with a white backgroun

Results

To keep things simple, all source depths are in the first layer of the CUS model. The Green's functions are converted to Z component records using the gsac mt command with the following source parameters:
Source   Depth(km)  Excitation
Force      0      F3  = Mg = 9.80E+11 dyne
Crack     0.1     MXX = 8.130e+18 dyne-cm MYY = 8.130e+18 dyne-cm MZZ = 2.450e+19 dyne-cm
          0.2     MXX = 4.065e+18 dyne-cm MYY = 4.065e+18 dyne-cm MZZ = 1.225e+19 dyne-cm
          0.3     MXX = 2.710e+18 dyne-cm MYY = 2.710e+18 dyne-cm MZZ = 8.167e+18 dyne-cm
          0.4     MXX = 2.032e+18 dyne-cm MYY = 2.032e+18 dyne-cm MZZ = 6.125e+18 dyne-cm

The first set of figures comapres the synthetics at a distance of 10 km. The P and S waves agree in amplitude, but the Rayleigh wave does not. This is because the Day an McLaughlin (1991) derivation used just the first term of a Taylor series expansion with depth, and the Rayleigh wae is very sensitive to depth.

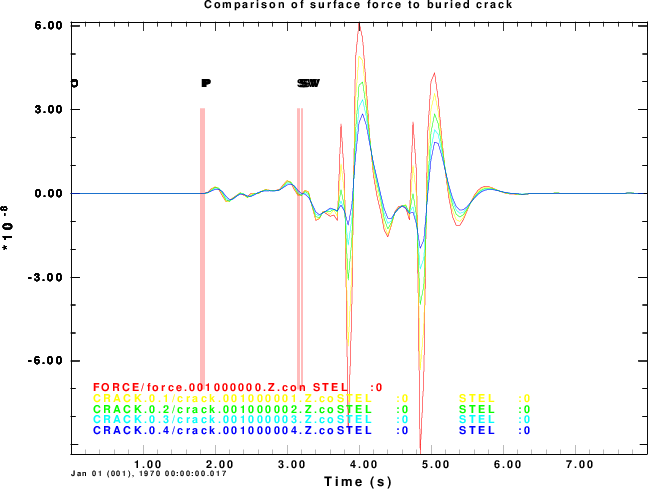

Comparison of the surface force and buried opening crack synthetics. Note the body waves are modeled very well

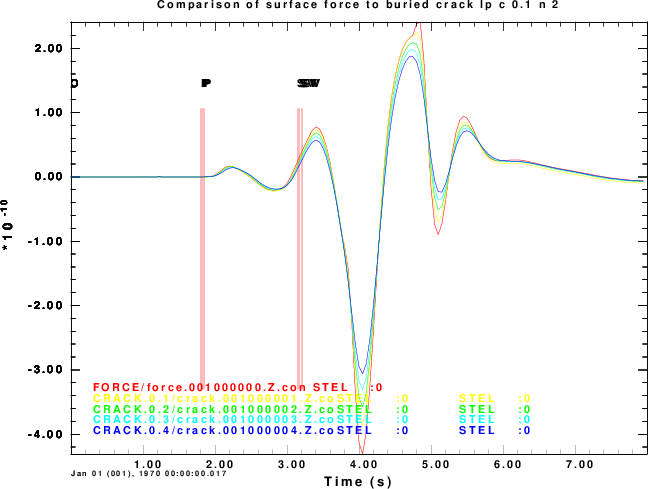

Comparison of the surface force and buried opening crack synthetics at an epicentral distance of 10 km after low-pass filtering at 0.1 Hz. Note the body waves are modeled very well and the surface wave agreement is much better,

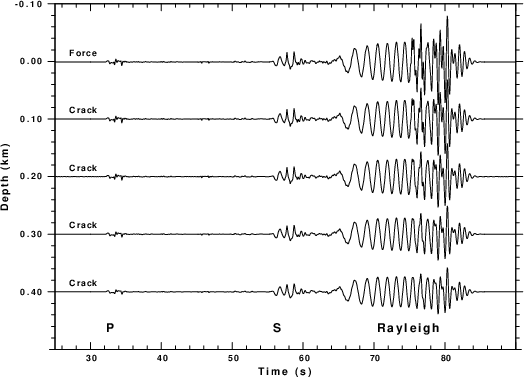

The next figure presents the synthetics at a regional distance of of 200 km. The traces are plotted with the same scale as a function of source depth. There is very good agreement

Comparison of the surface force and buried opening crack synthetics at a distance of 200 km. Note the much better agreement because the Q oin the model has remoed many of the high frequencies.
